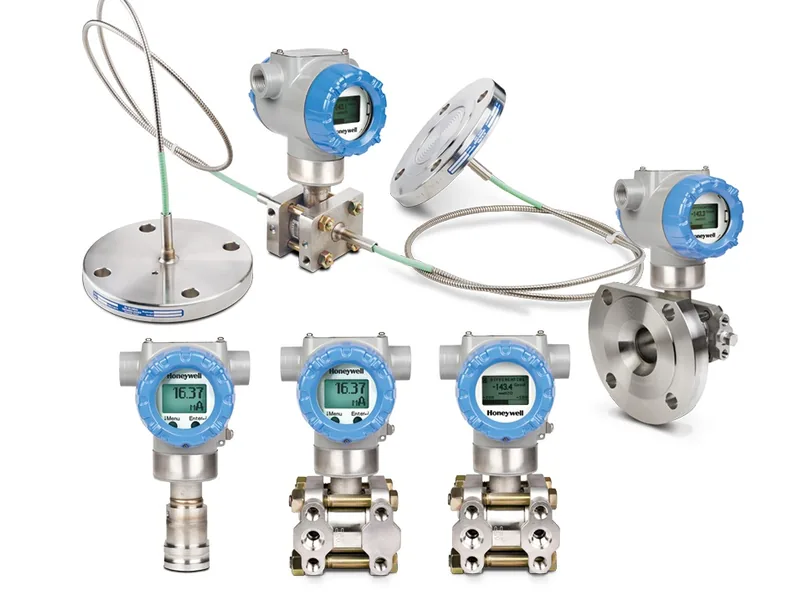

SmartLine® ST800 and ST700 pressure transmitters
SmartLine® is Honeywell's modular pressure measurement platform for harsh process environments, in two performance tiers: the ST800 for the highest demands and the ST700 for smart performance at conventional prices.
What it is
Purpose and use
The ST800 is specified for critical process control loops, custody transfer and SIL2 safety applications. Honeywell states industry leading stability up to 0.01 % of span per year for ten years, accuracy up to 0.0375 % of span as standard and 0.025 % of span optional, turndown ratios up to 400:1, a wide range of materials and measurement spans, and an available lifetime warranty.
The ST700 is positioned for monitoring, critical process control loops and SIL2 safety, with stability up to 0.02 % of span per year for five years, accuracy up to 0.05 % of span and turndown ratios up to 100:1.
Both tiers share the platform features: absolute, differential, gauge, remote seal, flanged (level) and multivariable transmitters, temperature and static pressure compensation, a universal terminal, modular design components, SIL2 certification with SIL3 capability as standard, dual seal compliance and an advanced graphic display. Honeywell backs the modular SmartLine® pressure offering with global agency and SIL certifications and an industry leading 15-year warranty.
Technical description
- ST800: accuracy up to 0.0375 % of span standard, 0.025 % optional
- ST800: stability up to 0.01 % of span per year for ten years
- ST800: turndown ratios up to 400:1, available lifetime warranty
- ST700: accuracy up to 0.05 % of span, stability up to 0.02 % per year for five years
- ST700: turndown ratios up to 100:1
- Absolute, differential, gauge, remote seal, flanged (level) and multivariable versions
- Temperature and static pressure compensation, universal terminal, modular components
- SIL2 certified and SIL3 capable as standard, dual seal compliance
- Manifolds available as block and bleed, 2-valve, 3-valve and 5-valve configurations
Stated according to the current manufacturer documentation. Binding data for a specific configuration is confirmed with the quotation.
Approvals and standards
- SIL2 certified, SIL3 capable as standard
- Global agency and SIL certifications across the SmartLine® pressure range
Application
Where it is used
- Critical process control loops in chemical and petrochemical plants
- Custody transfer measurement
- Level measurement via flanged and remote seal versions
- Safety instrumented functions requiring SIL2 rated field devices
Accessories and spare parts
- Manifolds: block and bleed, 2-valve, 3-valve and 5-valve
- Integrated, pretested transmitter and manifold assemblies
- Remote seals and impulse line components
Service by VERTEX GmbH
What we deliver around this product
VERTEX GmbH selects the tier against the actual requirement rather than the datasheet headline, supplies transmitter and manifold as a pretested assembly where that saves commissioning time, and handles installation, configuration and calibration.
Honeywell and the product names on this page are trademarks of Honeywell International Inc. VERTEX GmbH is an independent supplier and service provider in Krefeld, Germany.
FAQ
Questions about SmartLine® ST800 and ST700 pressure transmitters
ST800 or ST700 — where is the dividing line?
The ST800 is the choice for custody transfer, for loops where the measurement accuracy directly affects yield or billing, and where a ten-year stability figure removes recalibration visits. The ST700 covers monitoring duties and most control loops at a lower price. On a plant with hundreds of transmitters, the split usually lands somewhere around a fifth on the ST800.
Why order the transmitter and manifold as an assembly?
Because it removes a fitting operation, a leak path and a commissioning step on site. Honeywell offers integrated, pretested assemblies precisely for this — the saving is in site labour, not in the parts.
